FLOW METERS

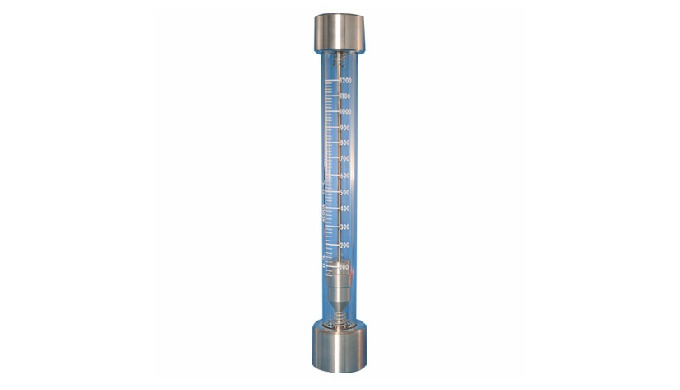

Flanged or threaded flow meters in pipes. Made entirely of plexiglass. Float made of AISI 316, Hastelloy, PVC, PTFE on request. For standard nominal diameters up to DN-65 or 2 1/2" thread Maximum pressure 10 bar (16 bar, 25 bar or 40 bar on request). Accuracy: +/- 5% Axial or square connection.

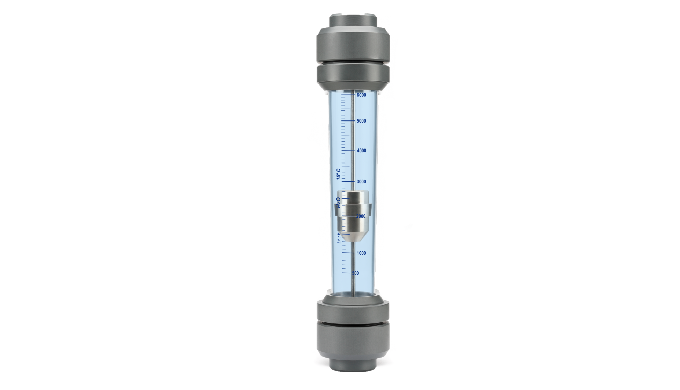

Flow meters threaded in direct reading pipes. Body in carbon steel, stainless steel or PVC. Polysulfon or polycarbonate measuring tube. For threaded connections up to 2 1/2". Maximum pressure 8 bar with plastic structure and 16 bar with metal structure. Accuracy: +/- 5% Max temperature: 120ºC for metal structure, 70ºC for PVC structure.

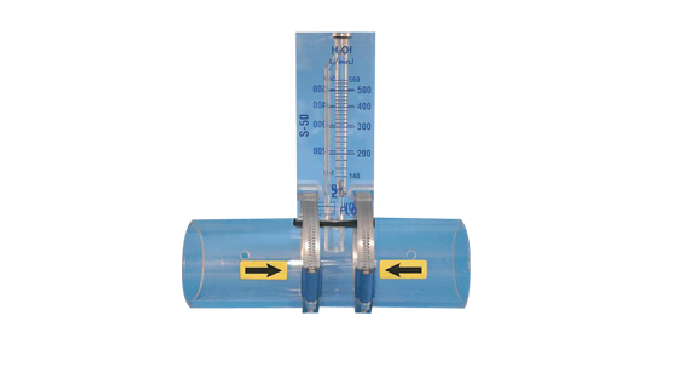

SERIES FLOWMETERS Flow meter based on PITOT system for medium-large flows. Flowmeters for installation in pipes from DN40 to DN200. One-piece methacrylate body PN-16 Precision +/- 10% For both horizontal (SH) and vertical (SV) installation. Equipment that takes up very little space, especially suitable for pressure groups and fire fighting groups.
